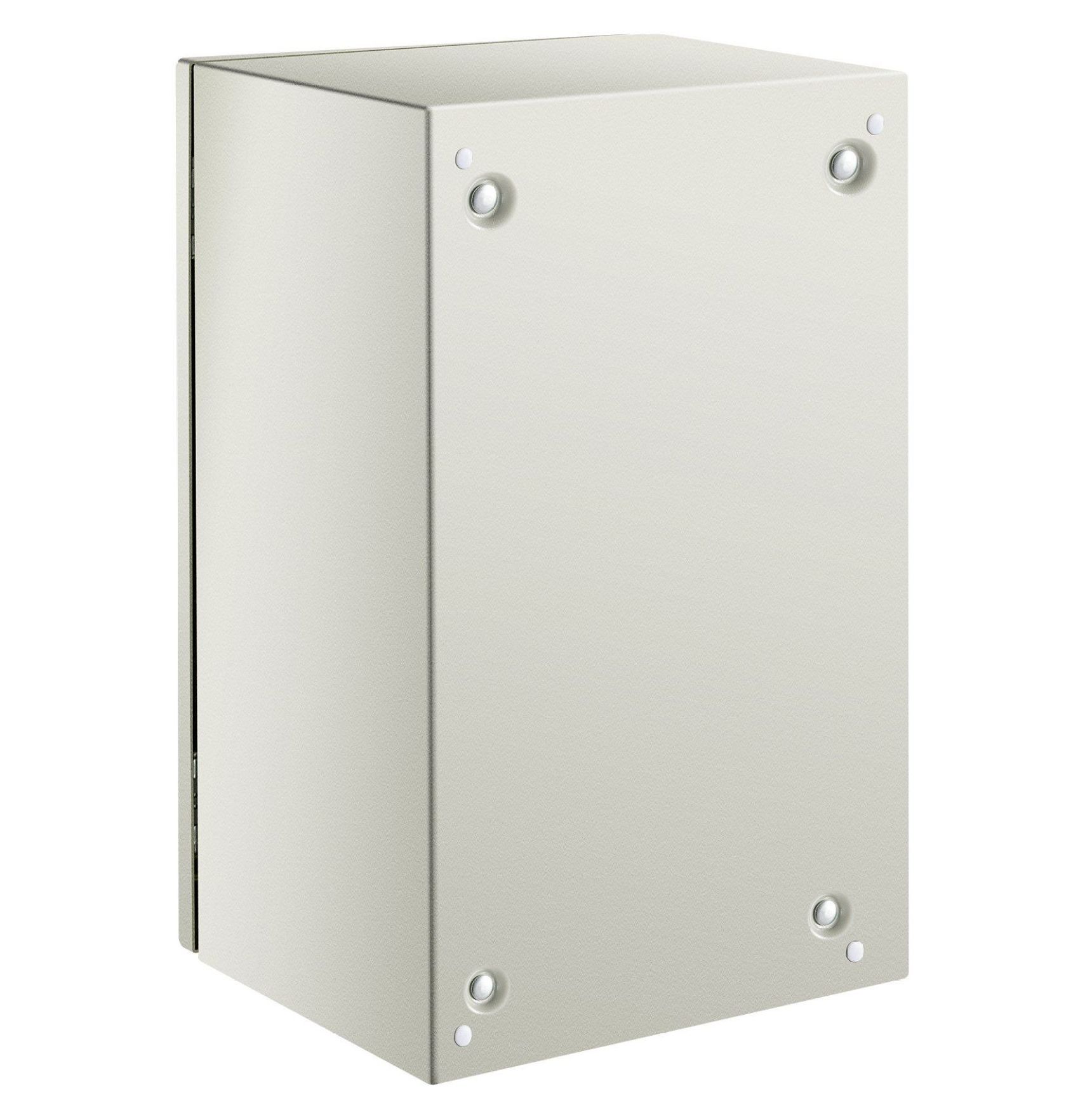

NEMA 4X Steel Enclosure 20x12x10", IP66 Waterproof Electrical Box, Outdoor Indoor Junction Box with Mounting Plate

Protect your electrical components with this durable NEMA 4X steel enclosure. Measuring 20 x 12 x 10 inches, this IP66 waterproof and dustproof box is ideal for both indoor and outdoor applications. Constructed from 1.5mm cold-rolled steel with an epoxy polyester powder coating, it offers excellent corrosion resistance and mechanical strength. Features include a detachable 2mm galvanized mounting plate for easy component installation, a reinforced lock and hinge for security, and a convenient cable entry/exit point. Designed to meet NEMA 1, 2, 4, 4X, and 12 specifications. Suitable for factories, construction sites, shopping malls, and residential areas. Specifications: Model: SPT; Color: Gray White (RAL7035); Material: 1.5mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 2mm Galvanized Steel; IP Rating: IP66; Outer Dimensions: 20 x 12 x 10 inches; Inner Dimensions: 19.6 x 11.7 x 8.5 inches; Weight: 28.22 lbs. Package includes: Electrical Box, 2 Keys, Mounting Plate, Mounting Hardware, and Sealing Plate.

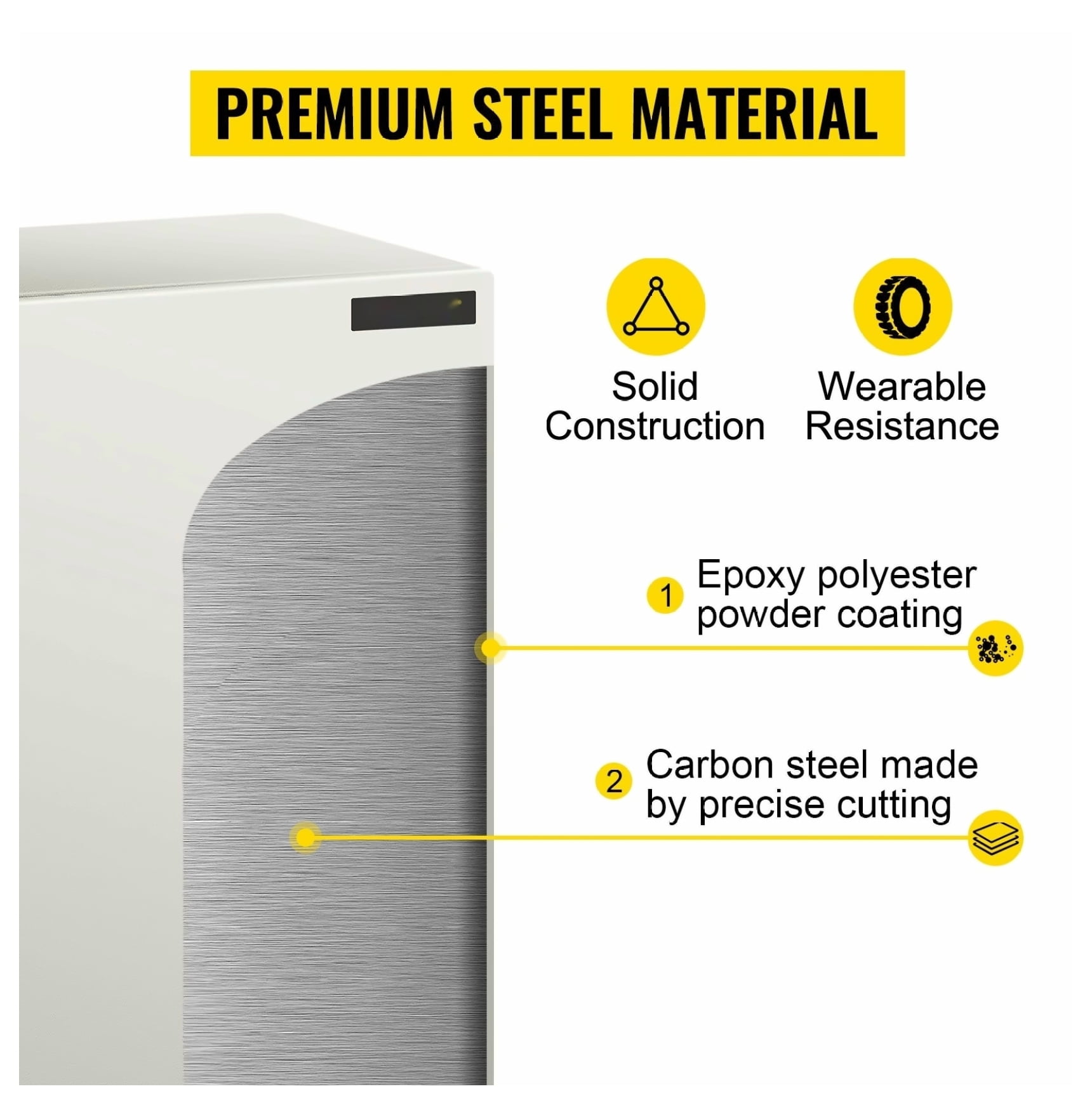

• 【Durable Steel Construction】: Crafted from 1.5mm cold-rolled steel with epoxy polyester powder coating; provides exceptional strength, corrosion resistance, and long-lasting durability in harsh environments; designed for reliable protection of electrical components

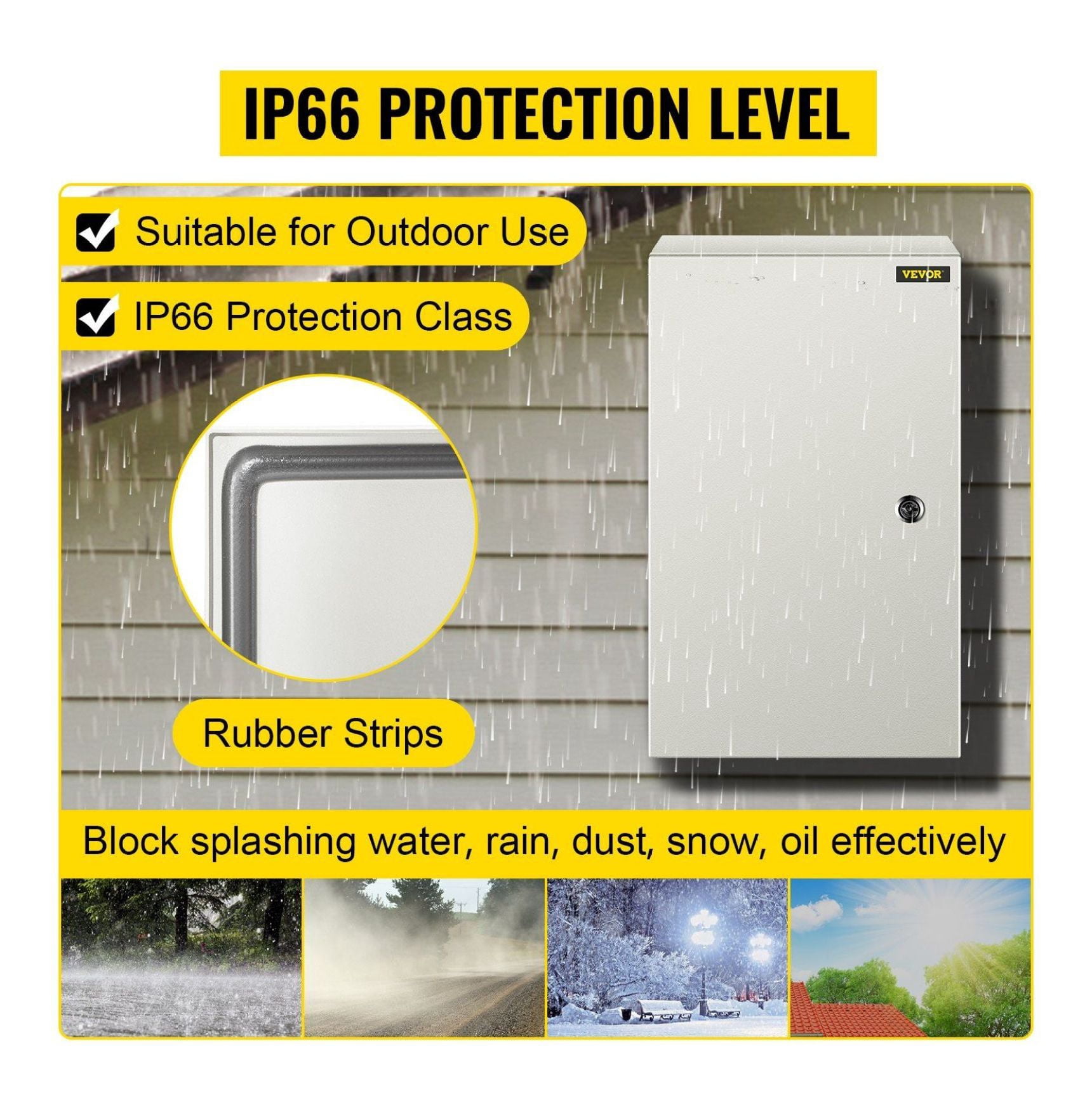

• 【IP66 Waterproof Protection】: Features an IP66 rating, ensuring complete protection against dust and high-pressure water jets; the sealing strip and enclosure design prevent moisture and contaminants from damaging internal components; suitable for both indoor and outdoor use

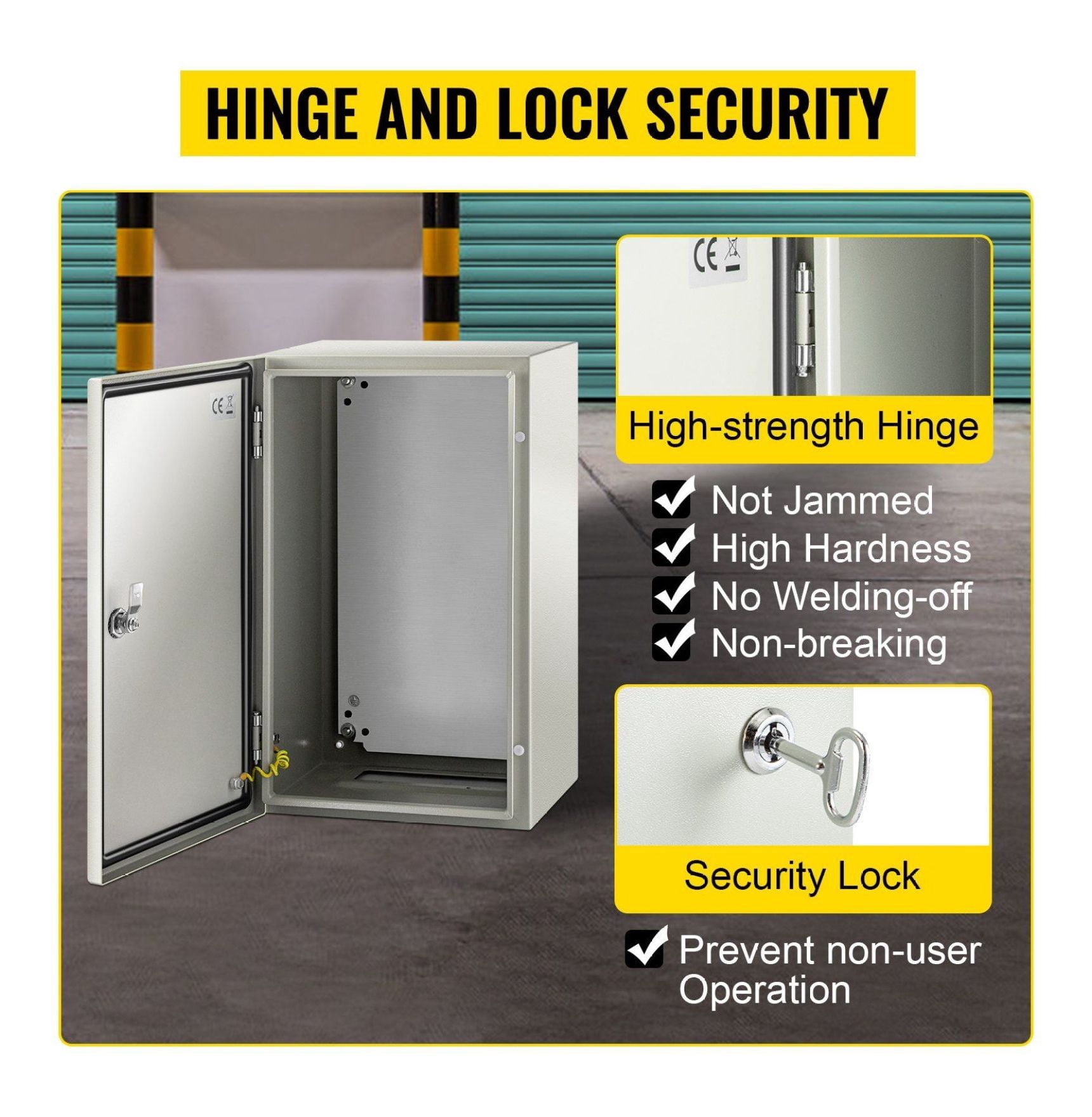

• 【Secure Lock & Reinforced Hinge】: Equipped with a high-quality metal lock core for enhanced security and resistance to unauthorized access; the reinforced hinge ensures smooth operation and prevents damage from repeated opening and closing; ideal for critical applications

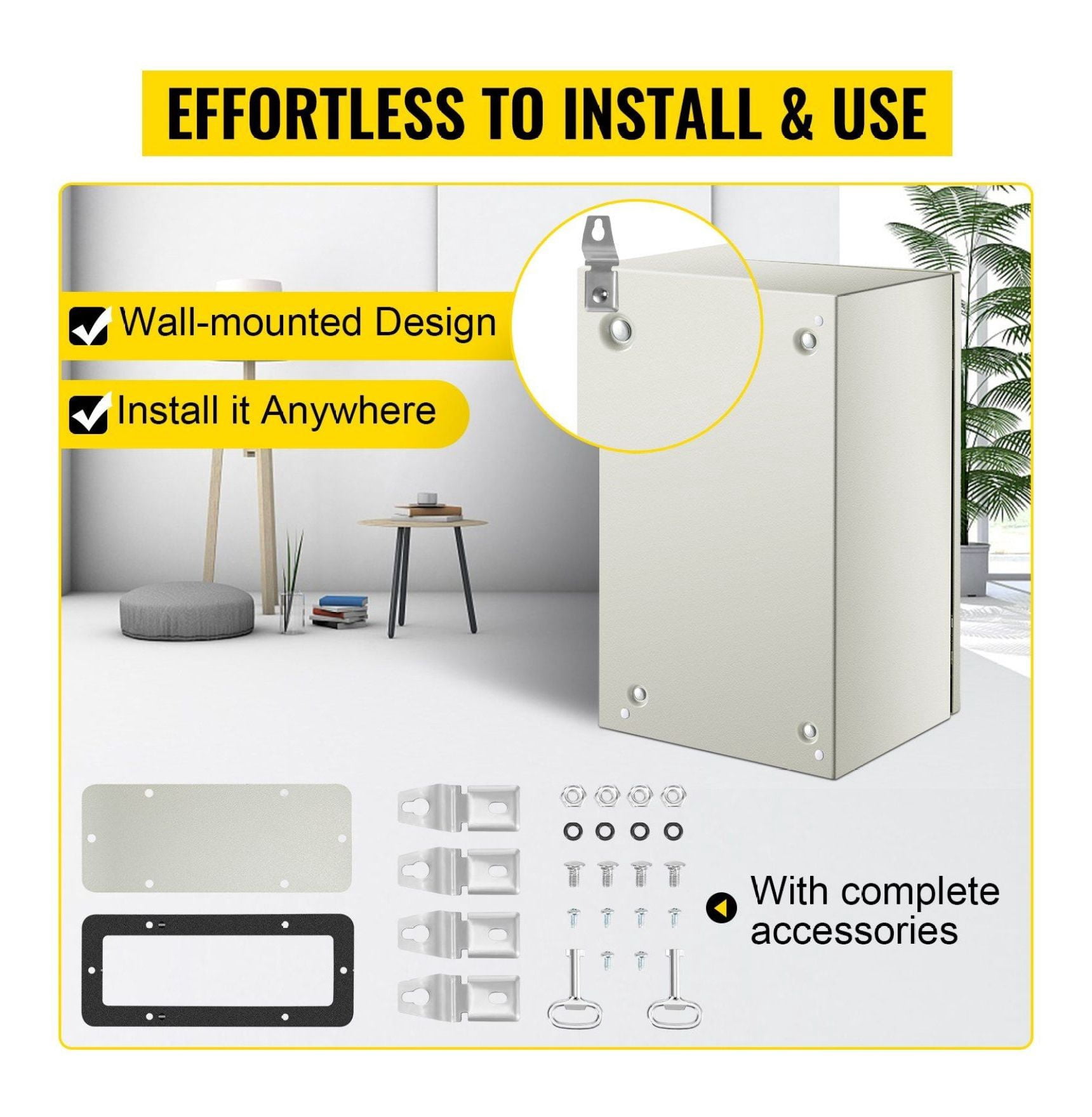

• 【Easy Installation & Mounting】: Includes a 2mm detachable galvanized mounting plate for simplified installation of PCBs, terminals, and other electrical components; four mounting holes on the back facilitate easy wall mounting and secure positioning; simplifies setup and maintenance

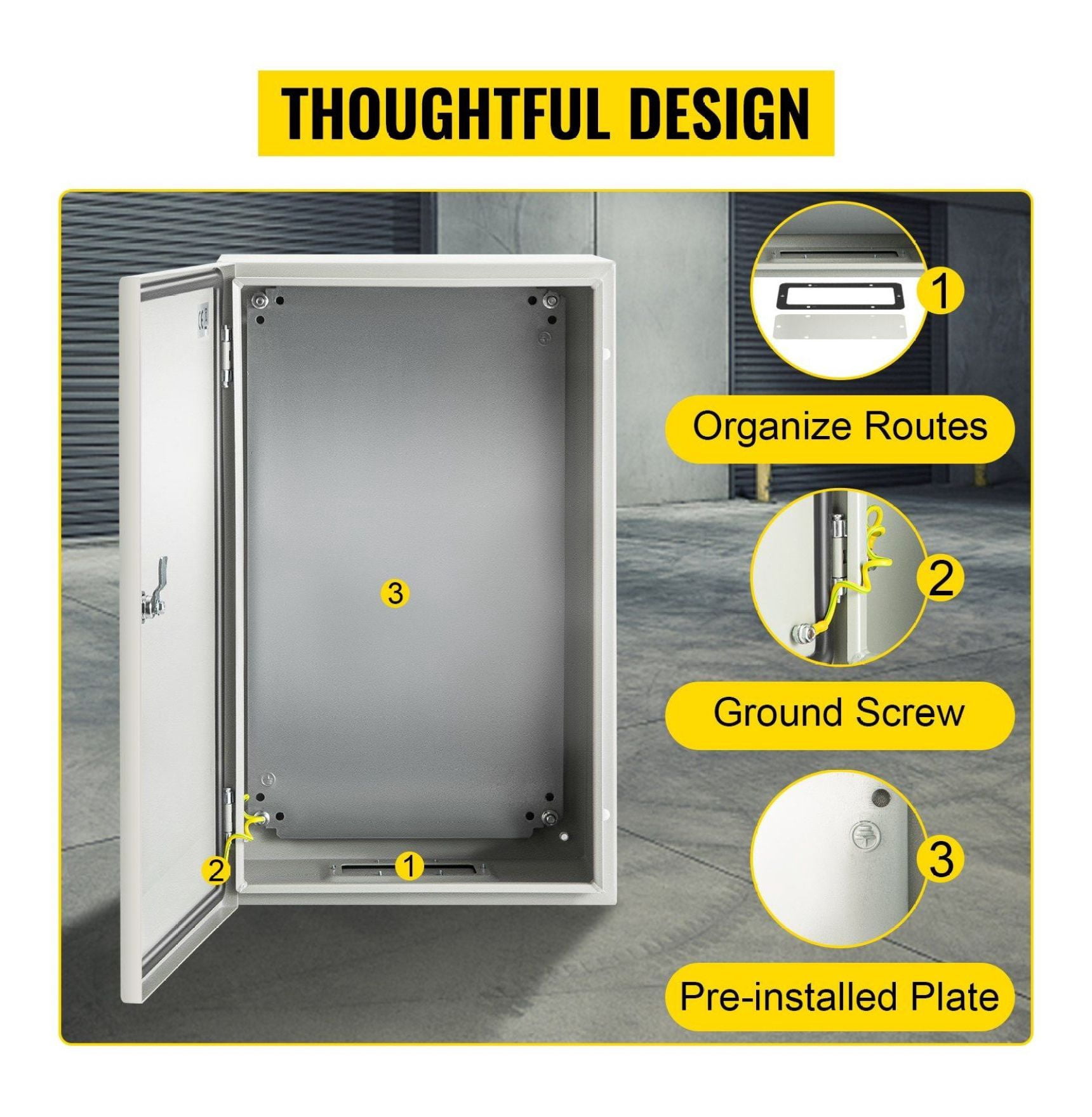

• 【Convenient Design & Versatility】: Features a bottom opening for effortless cable entry and exit; pre-installed grounding screw enhances safety; rounded corners protect cables from damage; ideal for factories, construction sites, residential areas, and more
