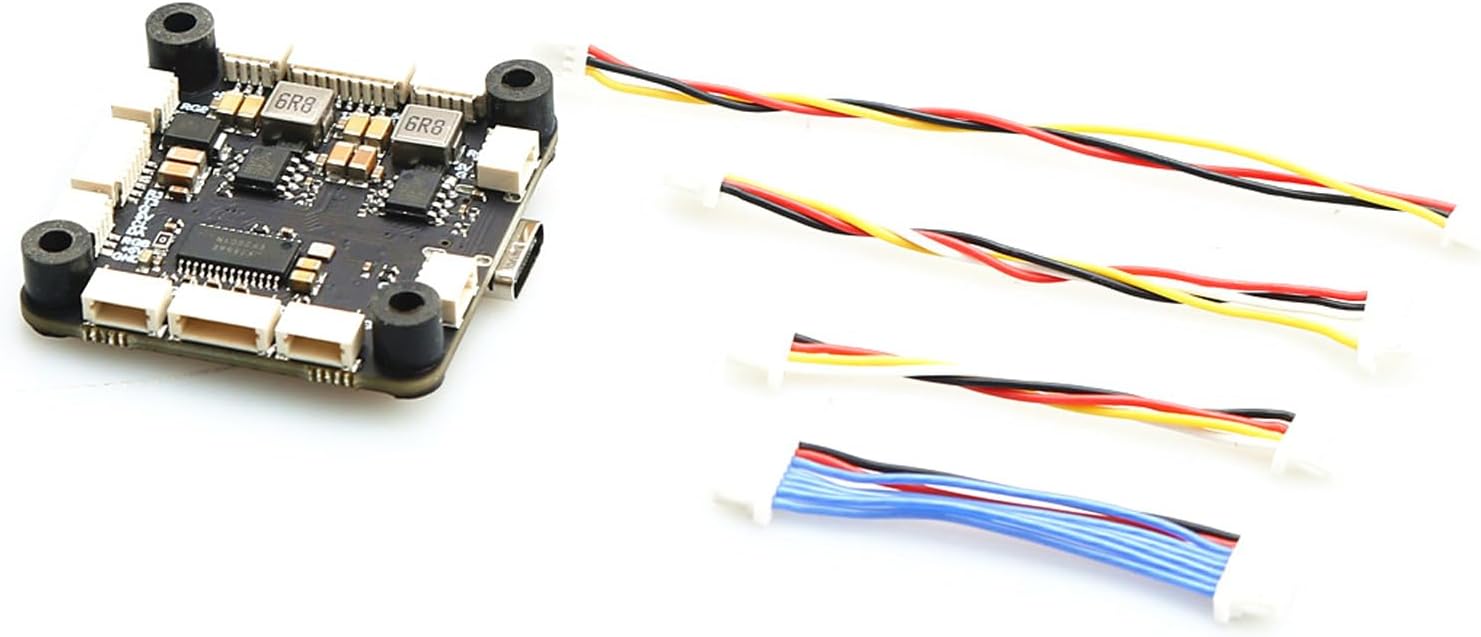

Durable F722 F7 Mini Controller with 80A 4in1 ESC for Remote Control FPV Quadcopter Racing, Strong Filtering, White 1Set (-3)

1. [ENHANCED AERIAL CONTROL] Achieve maximum power and precision with the OSD feature that allows for smoother control and maneuverability. 2. [MULTIPLE SUPPORT] Compatible with ELRS, , SBUS, IBUS, DSM2, and receivers for enhanced versatility in signal reception. 3. [DIVERSE UART OPTIONS] Choose from UART1/2/3/4/5/6 connections to suit your specific remote control quadcopter setup and preferences. 4. [VERSATILE CONNECTIVITY] The controller supports PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, and Dshot600 ESC signals for comprehensive connectivity options. 5. [FIRMWARE COMPATIBILITY] Designed with Betaflight 4.3.1 JHEF7DUAL.HEX firmware for seamless integration and optimal performance with your quadcopter setup. Specification: Item Type: F722 Controller MCU: STM32F722RET6 IMU: -42688 OSD: Baro: SPL06-001 : 16MB Input voltage: 3-8S Lipo(11.4-36V) 5V-BEC: 5V/2.5A ±0.1V 10V-BEC: 10V/2A(USER1) IO2: USER2 : ELRS(CRSF), (CRSF), SBUS.IBUS.DSM2. UART: UART1/2/3/4/5/6 IIC: 12C1 Led Strip: YES Buzzer: 5V ESC signal: Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600 USB: TYPE-C Current port: YES Voltage sensor: YES DFU (DFU ): YES Firmware: Betaflight 4.3.1 JHEF7DUAL.HEX Size: 36*36MM Mounting Hole: 30.5*30.5*4MM Item Type: 80A 30.5x30.5 4-in-1 ESC MCU: EFM8BB21F16G MOSFET: High performance MOSFET Power Input: 3-6S LiPo Continuous Current: 80 * 4 Burst Current: 90A(10seconds) ESC Telemetry: NO Current Sensor Scale: 200 ESC Protocol: DSHOT300/600 Firmware: Q_H_40_24_v0.19.2 Mounting: 30.5 x 30.5mm( 4mm hole diameter) Dimension: 57(L) * 56(W) Package List: 1 * F722 Controller Kit 1 * 4-in-1 ESC Kit 4 * M3*22 Screws 4 * M3 Nuts

• [ENHANCED AERIAL CONTROL] Achieve maximum power and precision with the OSD feature that allows for smoother control and maneuverability.
• [MULTIPLE SUPPORT] Compatible with ELRS, , SBUS, IBUS, DSM2, and receivers for enhanced versatility in signal reception.
• [DIVERSE UART OPTIONS] Choose from UART1/2/3/4/5/6 connections to suit your specific remote control quadcopter setup and preferences.
• [VERSATILE CONNECTIVITY] The controller supports PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, and Dshot600 ESC signals for comprehensive connectivity options.
• [FIRMWARE COMPATIBILITY] Designed with Betaflight 4.3.1 JHEF7DUAL.HEX firmware for seamless integration and optimal performance with your quadcopter setup.
